Charge-sensitive amplifier (CSA)

for detectors scintillator-photodiode;

Supply voltage:  +5V; Current consumption ~1mA;

A metal-glass sealed casing;

Dimensions: 22х19х5 mm.

DATASHEET.          EVM DATASHEET.

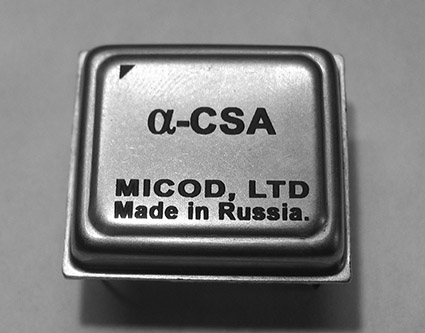

Charge-sensitive amplifier (α-CSA)

for semiconductor detector, high energy detectors scintillator-photodiode

Supply voltage: +5V; Current consumption ~1mA;.

A metal-glass sealed casing; Dimensions: 22х19х5 mm.

Difference from CSA-250: Cf=1pF & Rf=100MOhm.

EVM DATASHEET.



Shaper amplifier (MS-25).

Supply voltage:  +5V;

Current consumption ~1mA;

A metal-glass sealed casing;

Dimensions: 22х19х5 mm.

DATASHEET.          EVM DATASHEET.

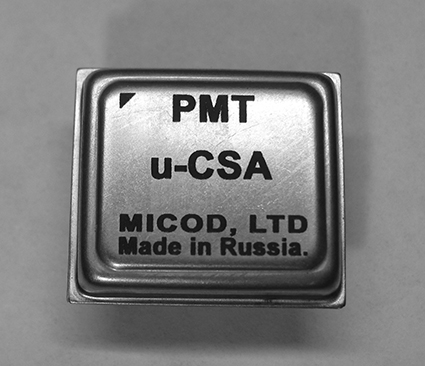

Universal Charge-sensitive amplifier (u-CSA) for PMTneutron detectors, Photon Counters, etc.

Any input polarity, select output polarity, internal or external feedback, ability DC offset output signal .

Dimensions: 22х19х5 mm.

Supply voltage ±5V to ±15V;

  DATASHEET.



High voltage power supply for PMT or Ionization chambers:

Max output voltage: -2500 or + 2500 V;

Supply voltage+4.5 - 12V;

A metal sealed casing;

Dimensions: 50х45х20mm.

DATASHEET.



Geiger-Muller tube EVM.

Supply voltage: 1.5-5V; Current consumption 100μA; Internal DC-DC converter 5V output for the periphery; Select 400 or 500V output; Signal processing - output pulse 5V-10μS; Arduino compatible; Supports most Geiger-Muller tubes; Low cost & simple use;

DATASHEET.

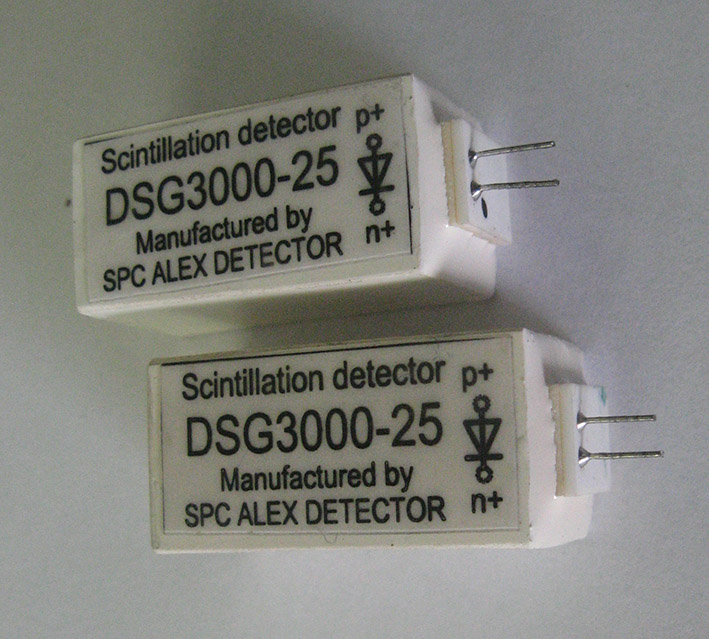

DSG2500-25/DSG3000-25  detector scintillator-photodiode.

Manufacturer: AlexDetector.

Scintillator: CsI(Tl) 10х10х30mm3;

Photodiode: PIN PD area 25mm2;

DATASHEET.





S-400-T  Si Alpha particle detector.

Manufactured: AlexDetector.

Active area: 400mm2; Penetrative ceramic frame;

Case dimensions: 26.3х24.5mm.

DATASHEET.   DETECTOR CLEANING





DMS-25x4-1000  Si Alpha particle detector.

Manufactured: AlexDetector.

Active area: 2500mm2 (4x625mm2); Penetrative ceramic frame;

Case dimensions: 61х71mm.

DATASHEET.   DETECTOR CLEANING





KVANT Si detector.

Manufactured: AlexDetector.

Active volume: 1mm3

Case dimensions: 8х7x4mm.

DATASHEET.

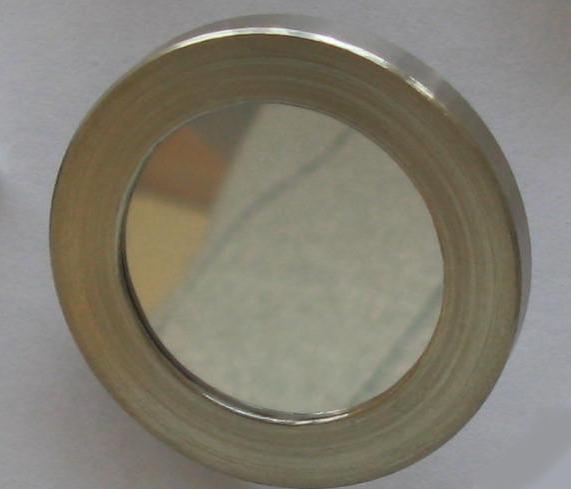

AD-25-500  Si Alpha particle detector. - Make to order (MTO)

Manufactured: AlexDetector.

Active area: 500mm2;

Case dimensions: D=36.5mm.

DATASHEET.   DETECTOR CLEANING

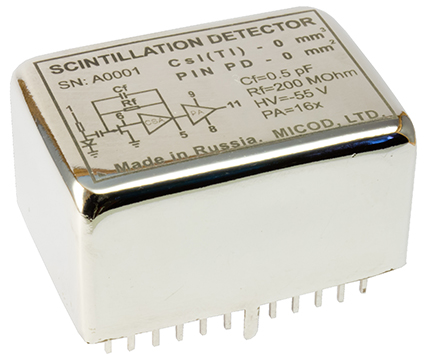

OEM detector scintillator-photodiode with integrated CSA - END OF PRODUCTION

Scintillator type: CsI(Tl) 10х10х10mm3 or 10х10х25mm3;

Photodiode: PIN PD area 25mm2 or 100mm2, Internal CSA-250.

Supply voltage:  +5V; Current consumption ~1mA;

Dimensions:  35х25х19 mm.

DATASHEET.





Library of all company products in CAD Altium Designer.
